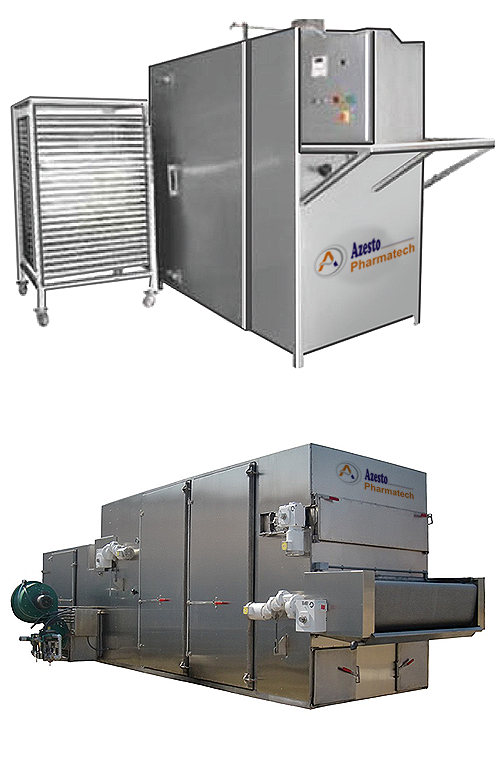

Tray Dryer

Our Tray Dryer is designed for uniform circulation of hot air in the drying chamber. Electrical / Steam / Oil Heating mode

Salient Features:-

Inside surface is painted with heat resistant aluminum paint and out side with synthetic enamel.
cGMP models with SS 316 Construction, Single page design, coving coroners, fully washable type models available.
Inside of the dryer. If consists of Starters, contactors, safety relays, ckt breakers, indicating lamps, push buttons, timers, controllers etc.

Construction
External Tray Dryer: 2mm Thick internal: 2mm Thick moc: cGMP

Surface Finish External Tray Dryer: Buffed to 150 grit matt finish Internal Tray Dryer: Buffed to 220 grit mirror finish.

Inlet & Outlet:- All Tray dryers have a 5 micron pre filter at the inlet and a manually infinite adjustable damper at the outlet.

Door:- Doors at provided at the front and / or rear side of the dryer. Door lips are lined with silicon rubber gasket to prevent any leakages. Suitable locking is provided for the doors of Tray dryer.

Air Circulation:- Air circulation is done by specially designed recirculation blowers inside the Tray dryer. The blower capacity, static & design depends on the size and model of dryer.

Heating: Dryers are normally supplied with either steam/ electric/ thermic fluid / hot water heating system. Suitable heating coils / caloriefiers are provided in the tray dryers.

Temperature Control Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.

Trays:- Trays are available in S.S. 304/ 316 q. All trays are fully die pressed and with coved corners. Trays are buffed to mirror finish. Trays are also available in aluminum / Polypropylene / Frp/ M.S. galvanized as per clients requirements.

Trolley:- Trolley is provided in the tray dryers to accommodate trays in it. Trolley trucks are used to load and unload the trays into the dryer.

Control Panel:- Automatic Control panel is fitted on the side of the dryer. If consists of Starters, contactors, safety relays, ckt breakers, indicating lamps, push buttons , timers, controllers etc.

Techical Specifications:-

MODELS	AZTD-12	AZTD-24	AZTD-48	AZTD-96	AZTD-192
Loading capacity	12 Trays	24 Trays	48 Trays	96 Trays	192 Trays
External Dimension W D H in mm	1370X530X940	1370X940X940	1980X1020X1880	3320X1900X1880	3320X1900X1880
Internal Dimension In mm	840X430X840	840X860X840	1020X930X1830	1960X930 X1830	1960X930X1830
No of Doors	One	One	One	Two	Two
No of Blowers	One	Two	One	Two	Four
No of motors/H.P.3 PHASE 415 VOLTS.	1/0.5 H.P.3 phase 415 volts	1/0.5 H.P.3 phase 415 volts	1/1 H.P.3 phase 415 volts	2/1 H.P.3 phase 415 volts	Four/1 H.P.each3 phase 415 volts
Electrical Heating Load for 100°C/200°C /300°C	3kw/6kw/9kw	6kw/9kw/12kw	9kw/15kw/18kw	15kw/21kw/27kw	36kw/42kw/48kw
Steam Heater No. of coils.	2	2	2	2	2
Steam Pressure	3.3 kg/cm2	3.3 kg/cm2	3.3 kg/cm2	3.3 kg/cm2	3.3 kg/cm2
Steam consumption	25 LBS/hr	45 LBS/hr	60 LBS/hr	80 LBS/hr	120 LBS/hr
Insulation in mm 100°C/ 200°C/ 300°C	50/75/75	50/75/75	50/75/75	50/75/75	50/75/75
No of Trolleys	Rack System	Rack System	One	Two	Four
Tray Size	812X 406 X 31	812X 406 X 31	812X 406 X 31	812X 406 X 31	812X 406 X 31
Trolley Dimension	Fixed Racks	Fixed Racks	840X960X1780	840X960X1780	840X960X1780

Our machines are also known as tablet dies punches, tabletting machine, pharmaceutical machinery, tablet manufacturing machinery, tablet making machinery, tablet pharmaceutical machines supplier, tablet making machines, tablet section, single punch tablet punching machine, tablet compression machine, tableting, tablet section machineries, tablet compression machine, tablet pharmaceutical machinery, manufacturer tablet dies and punches, tablet press, tablet dies, manufacturer and exporter tablet press, tablet press compression.

We are Manufacturer, Whole Seller, Supplier, Trader, Exporter of Tray Dryer. We develop tray dryer design to suit your production requirement. We are a leading pharmaceutical machinery manufacturer and supplier from Ahmedabad, Gujarat, India.
